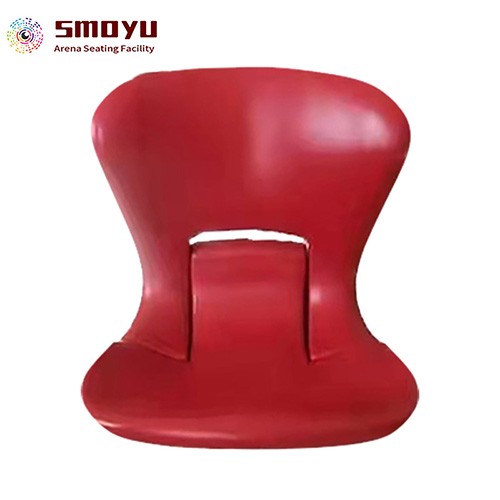

FB015 Stadium Chair
The FB015 Stadium Chair is a high-quality, durable seating solution designed for sports venues, arenas, and public facilities. Built with UV-resistant HDPE material and rigorously tested for performance and safety, it offers reliable comfort and long-term use.
Key Specifications
- Model: FB015
-

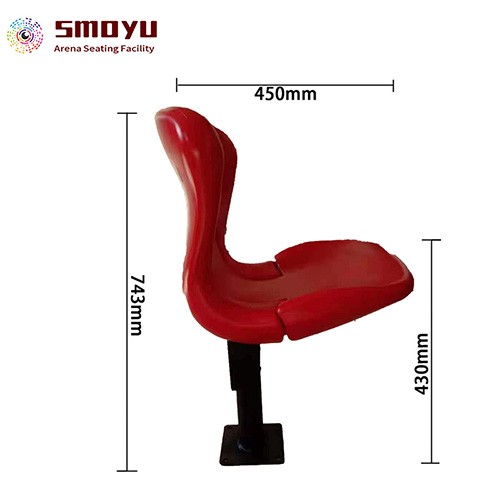

Dimensions:
- Width: 42.5cm
- Height: 45cm
- Depth: 45cm
- Thickness: ≥2.5mm
- Material: HDPE with UV resistance
- Colors: Red / Blue / Green / Customized
- Compliance Standard: QB/T2601-2013
| Performance & Durability Tests | ||
| Test Type | Test Item | Specification |
| Seat & Back Durability Joint Test | Seat Surface Load | 950N, 100,000 cycles |
| Seat Back Load | 330N, 100,000 cycles | |
| Seat Balance Load | 950N | |
| Seat & Back Static Load Joint Test | Seat Surface | 1600N, 10 times |
| Seat Back Load | 760N, 10 times | |
| Seat Balance Load | 1600N | |
| Seat Surface Impact Test | Impact Height | 240mm, 10 times |
| Chair Back Impact Test | Impact Height | 330mm, 10 times |
| High Temperature Test | - | 100℃±5℃ for 72 hours |
| Low Temperature Test | - | -55℃±5℃ for 72 hours |
Installation Options
The FB015 chair supports multiple installation types to fit different venue layouts:

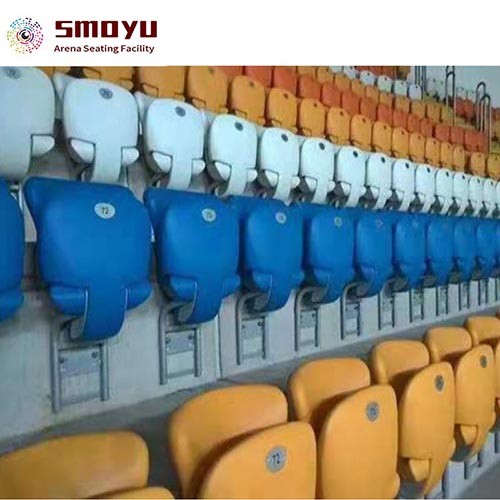

- Type A: Installed to stairs (tiered seating)

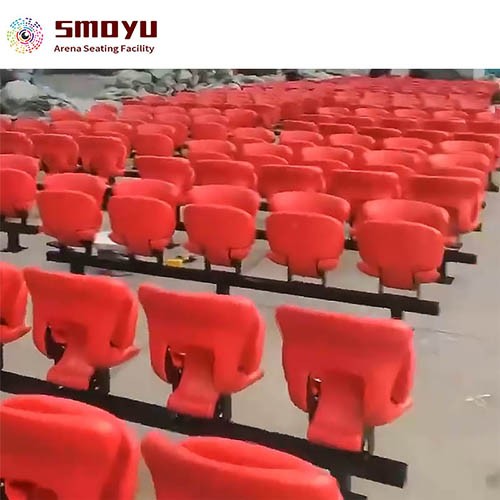

- Type B: Installed to the ground (flat floor)
- Also compatible with bracket-mounted and rail-mounted configurations
Applications
Ideal for:
- Stadiums and sports arenas
- School gymnasiums and auditoriums
- Public event venues and concert halls
- Indoor and outdoor sports facilities
