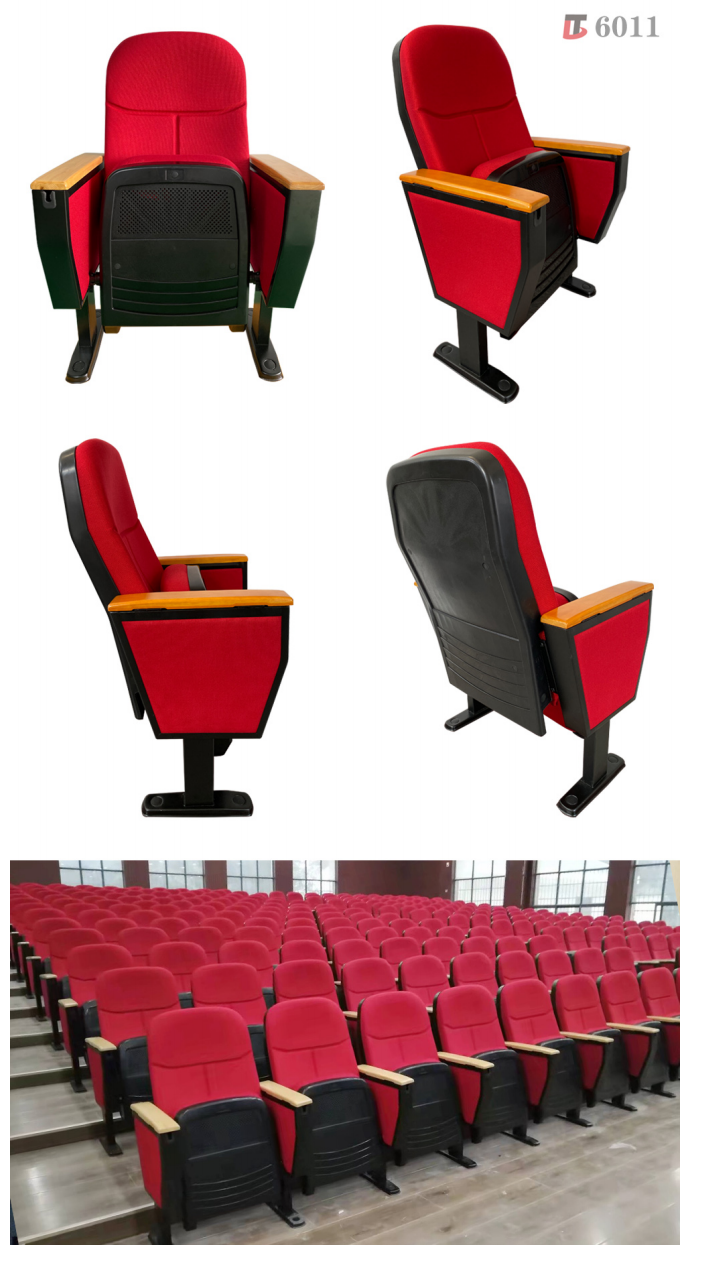

New Technology 3D 4D 5D Electric Movie Theatre Cinema System Chair

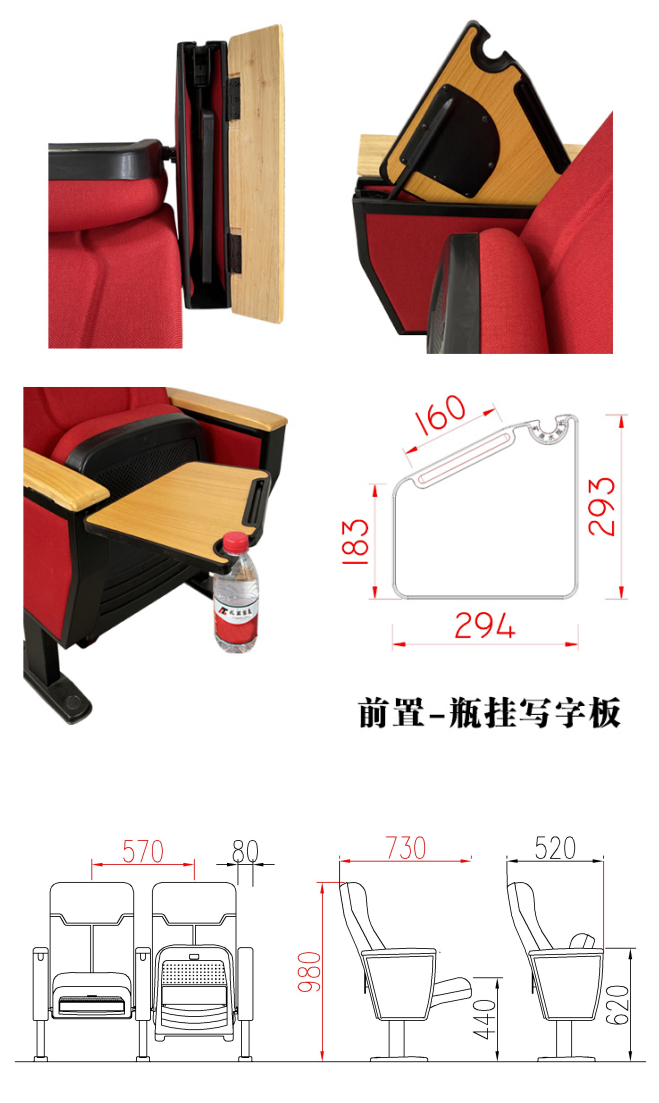

Dimension：570*1000*730mm

Specification：

1. Dimensions: center distance 570mm (including one armrest); total height 1000mm; overall depth 730mm (after the seat is opened); armrest width 80mm; seat inner width 490mm; armrest height 620mm; seat height 440mm.

2. Back/seat shell: Made of high-quality PP multi-element composite material through mold injection molding, it has strong support and high hardness, can resist deformation, and is wear-resistant and durable. The seat shell is uniquely designed with honeycomb sound-absorbing air holes. Back shell size: 745*445*60±5mm, seat shell size: 515*430*75±5mm, wall thickness ≥3mm.

3. Back/seat inner panel: Made of multi-layer board through mold high pressure molding, the curve conforms to the principle of ergonomics. Back inner panel size: 700*480*10±5mm, seat inner panel size: 500*430*10±5mm.

4. Back/seat sponge: 40 kg/m high-density cold foamed one-time shaping sponge is used. Back sponge size: 680*470*95±5mm, seat sponge size: 515*430*75±5mm.

5. Tripod: The armrest frame is made of T1.6mm high-quality cold-rolled steel plate, and the foot tube is 80x40 square tube. It is formed by die stamping and welding, and the surface is treated with rust-proof phosphating, electrostatic spraying and high-temperature baking paint. The side baffle adopts the inner package and outer embedding process, and the material is 3mm thick high-quality density board, and it is attached with wool and linen fabric. The armrest frame size: 410*340*75±5mm, the foot size: 310*25*76±5mm.

6. Armrest: Imported solid wood is used after processing and forming, and then painted. Armrest size: 422*80*29±5mm.

7. Fabric: High-quality wear-resistant linen fabric is selected, which feels comfortable.

8.Return mechanism: Double spring automatic return device is used to ensure accurate automatic reset of the seat.

9.Fixation method: Hexagon socket expansion screws with anti-rust electrostatic spraying are used, and the fixing holes are covered with plastic covers for dust prevention.

★Writing board: It adopts an integrated iron tray, and the connecting bracket is an iron column with a diameter of 15mm. The board surface adopts melamine writing board, with reinforced plastic PA6 edge sealing around, and is equipped with pen slot and bottle holder. The end of the pen slot is deepened for easy removal of pens, and the bottle holder is a snap-on design, which can firmly hang mineral water bottles. Tray size: 155*140mm, board size: 294*293*16mm.
