Description

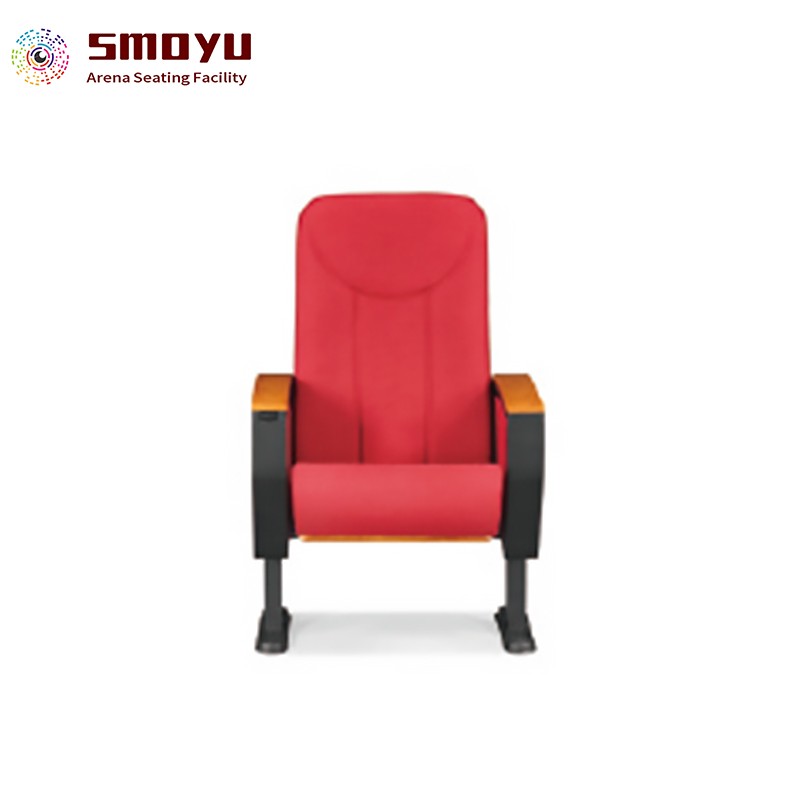

AC6109-3 Royal Modern Commercial Theater Seat with Integrated Writing Tablet
Overview
Elevate your venue’s sophistication with the AC6109-3, a premium theater seat combining royal aesthetics, ergonomic comfort, and multifunctional utility. Designed for high-traffic commercial spaces like cinemas, opera houses, and conference halls, this seat features a concealed foldable writing tablet, advanced reclining mechanisms, and customizable upholstery to match any interior theme.
Key Features
-
Luxury Ergonomic Design
- Contoured backrest and seat cushioning with high-density PU foam (45KG/m³ back, 60KG/m³ seat) for all-day comfort.
- Breathable linen-blend fabric upholstery (customizable colors) ensures airflow and durability.
-
Industrial-Grade Construction
- Frame: Reinforced cold-rolled steel (1.5-2mm thickness) with anti-corrosion coating (phosphating + electrostatic powder spray).
- Backrest/Seat Panels: 15mm multi-layer wood boards sealed with eco-friendly lacquer for moisture resistance.
- Armrests: Premium imported oak with 5-layer polished finish (26mm thickness).
-
Space-Saving Functionality

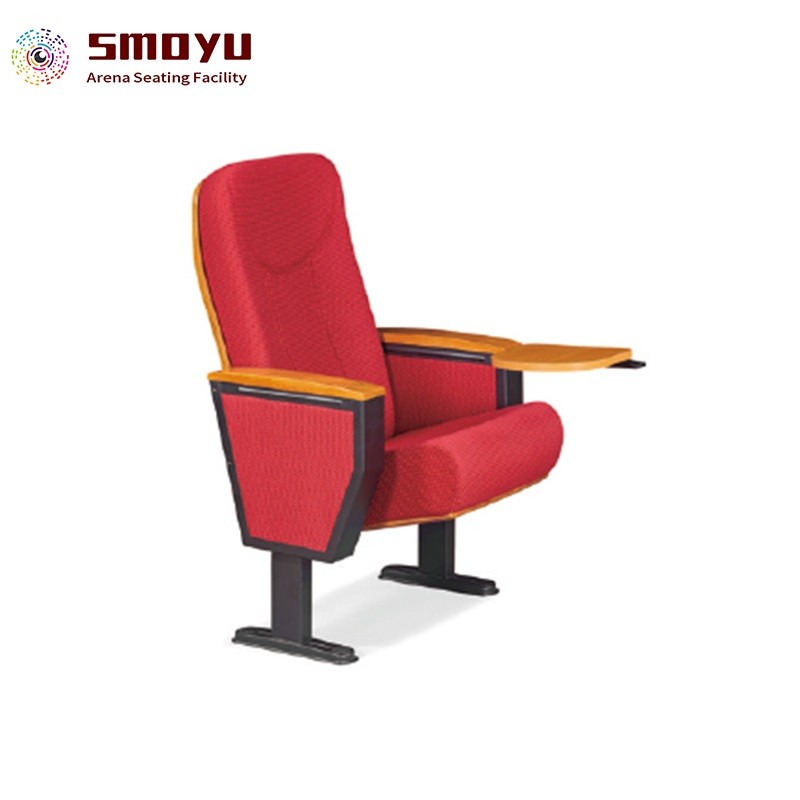

- Hidden flip-up writing tablet (265x235x15mm) with steel support rod and fire-resistant surface.
- Compact footprint: 720mm depth (closed), 860mm (tablet open).
-
Silent Reclining System
- Torsion spring + damper mechanism enables smooth, noise-free resetting.
-
Easy Installation & Maintenance
- Modular steel frame with M-shaped corner brackets (3mm thickness) for rapid assembly.
- Compatible with fixed or linked configurations (5-seat rows recommended).
Technical Specifications
| Component | Details |
|---|---|
| Dimensions | Seat Height: 450mm |
| Seat Depth | 430mm (closed) |
| Weight Capacity | Tested to 150kg (330lbs) static load. |
| Flooring Requirements | Concrete: ≥70mm thickness |
Applications
- Movie theaters & premium cinemas
- Conference halls & university auditoriums
- Opera houses & concert venues
- Corporate training centers
Customization Options
- Upholstery: 50+ fabric/color choices.
- Logo engraving is available on armrests.
Warranty
(1) Components with five-year quality assurance:
Outer shell, inner panel, sponge, armrest frame, footrest, armrest, writing board, return mechanism.
(2) Components with one-year quality assurance:
Surface treatment of metal parts, fabrics, and paint
Note: Minimum row spacing of 900mm required for optimal accessibility.
All measurements include ±5-10mm tolerance.
