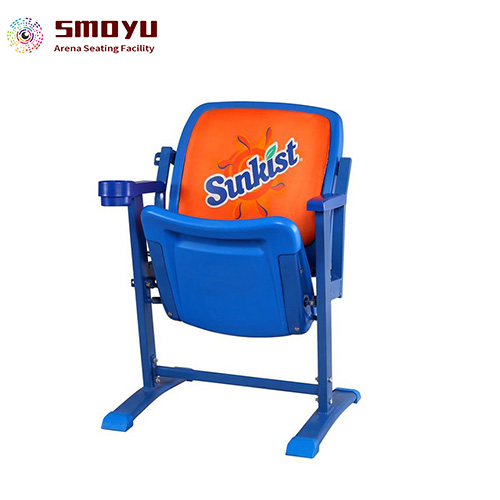

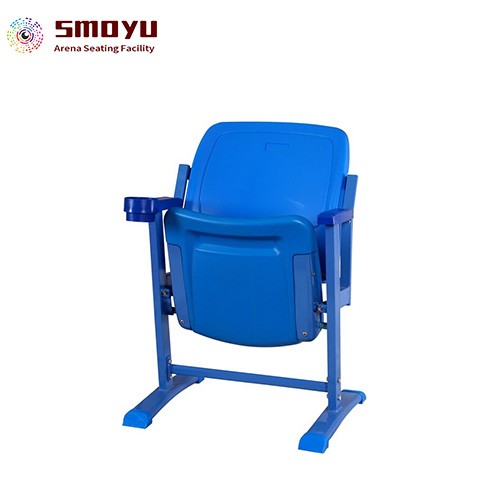

The stadium seating FB01 series is perfect for
stadiums for seat design, shape and installation. It is very beautiful, safe
and long life to be used in stadium, good for installation and repairing them. The seat material is made of HDPE which is High-density
polyethylene. One time to be shaped and soft surfaces. HDPE is good material
for seats and high resistance against high temperatures, Anti-aging, UV proof, impact resistance, high
and low temperature resistance, good anti-oil resistance.
The size of the FB013 floor mounted with aluminum feet
as per Height Width Depth 830x500x550mm. It Multifunction consist of
Backrest and Seat board in HDPE plastic, and Die-casting aluminum frame for
The Main mechanical properties of HDPE seat:
The stadium seating FB01 series is approved
with standard QB/T2601-2013, Seats and backrest of the chair static load: 2000N×20times, back of the chair static load 800N×20times.
Balance load of seat part: 2000N. Endurance load of seats part and back part: 960N×200
thousand times, and 350N×200 thousand times. Anti-impact Ability: Hight 360mm×20
times, back of the chair Hight 630mm×20 times. Ageing resistance performance: ≥3500.
Outdoor UV proof. High temperature resistance：-60°C to ＋80°C, 72h. The
seat Life span: more than 10 years.
Color of the HDPE: We have standard color for produce,
also we are glad to supply chairs with required Pantone Numbers, required Color
samples for confirm.
FB013 is consisted of plastic parts and metal frame chairs. The HDPE chair parts size as below:
There are 4 ways
l Floor Vertical installation (item No. FB011):
(directly installed upon the front end of concrete step or wooden step,
with screws in the bottom to fix the seat and the step).
l Side Riser mounted with Die-casting aluminum feet
(item No. FB012)
l Multifunction Stand feet and wall feet Riser mount (Item
(seats are fixed upon the iron
feet, which fixed upon the riser slope of concrete steps or structure)
