Description
Product Content:
RENTAL DISPLAY SUNSHINE SERIES
The Sunshine Series is a versatile, high-performance rental LED display line, designed for both indoor and outdoor stage events, concerts, and live productions. With lightweight cabinets, flexible configurations, and front maintenance, it delivers reliable, vibrant visuals for every rental scenario.
1. Indoor Front Maintenance Series
- Available Models: P1.9 / P2.6 / P2.9 / P3.9

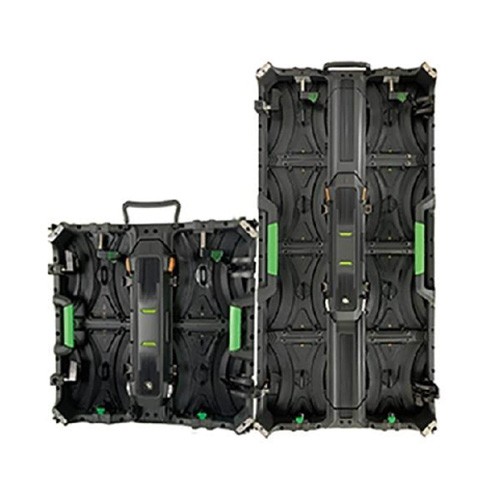

- Cabinet Sizes: 500×500×90mm / 500×1000×90mm
- Cabinet Weight: 6.5kg / 9kg
-
Key Features:
- High brightness (700-800 nits) and 3840Hz refresh rate for flicker-free visuals

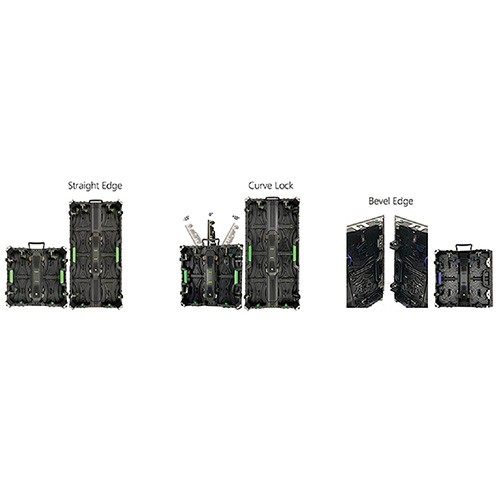

- Corner protectors and curve locks for durable, seamless setups
- Front/Rear maintenance options for flexible on-site service
Indoor Technical Specifications
| Parameter | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 | 2.604 | 2.976 | 3.91 |
| Density (dots/m²) | 262,144 | 147,456 | 112,896 | 65,536 |
| LED Lamp | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Module Pixel | 128×128 | 96×96 | 84×84 | 64×64 |
| Cabinet Pixel | 256×256 | 192×192 | 168×168 | 128×128 |
| Module Size (mm) | - | 250×250×15 | - | - |
| Cabinet Size (mm) | 500×500×90 / 500×1000×90 | 500×500×90 / 500×1000×90 | 500×500×90 / 500×1000×90 | 500×500×90 / 500×1000×90 |
| Cabinet Weight (kg) | 6.5 / 9 | 6.5 / 9 | 6.5 / 9 | 6.5 / 9 |
| Brightness (nits) | 700-800(40s) | 700-800(32s) | 700-800(32s) | 700-800(28s) |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Power Consumption (W/m²) | 160W/㎡ | 160W/㎡ | 160W/㎡ | 160W/㎡ |

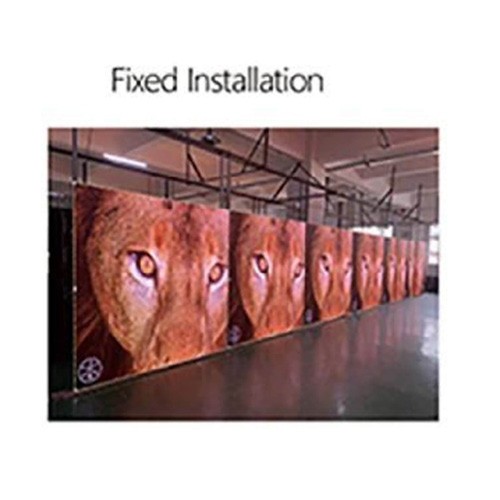

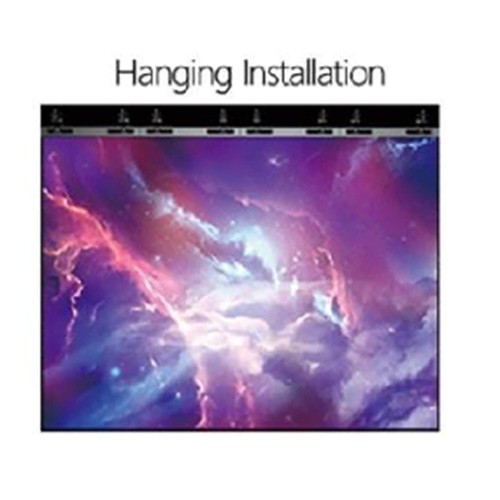

| Installation Method | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Signal Input | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI |
