Description
Product Content:

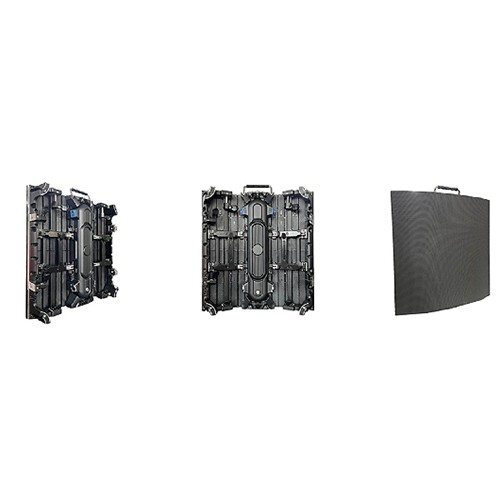

SMOYU Stage Rental Multifunction Flexible LED Display Screen

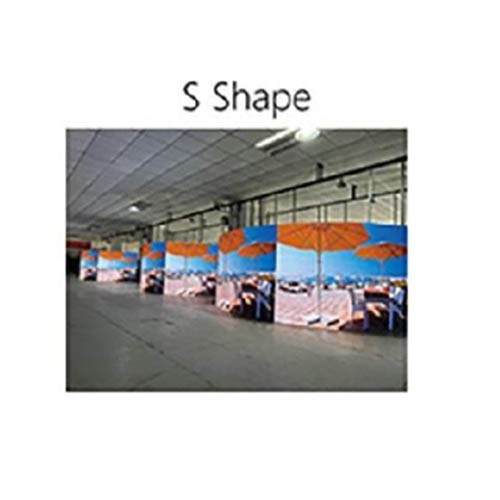

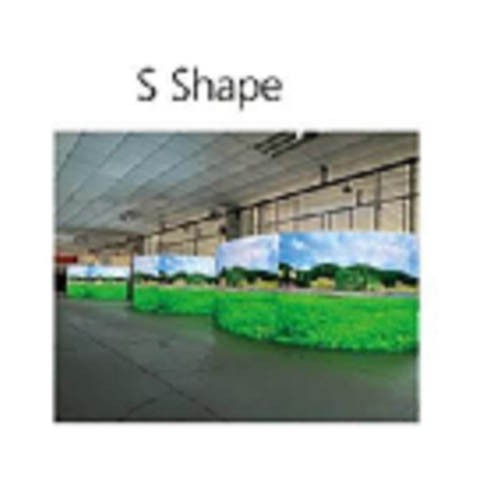

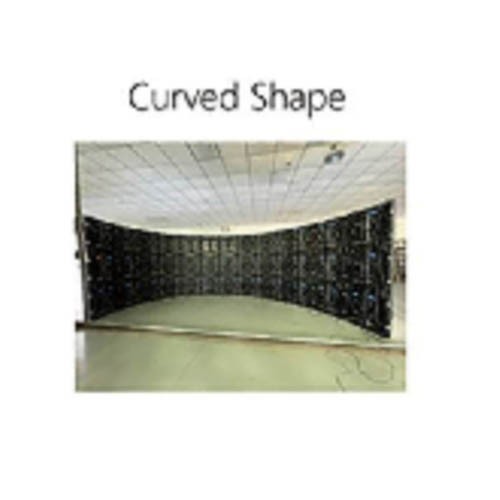

This series of flexible LED displays is specially designed for stage rental scenarios, covering both indoor and outdoor applications. It supports various creative installations including round shape, curved shape, and S-shape configurations, making it an ideal solution for concerts, events, and live performances.
1. Indoor Front Maintenance Series
- Available Models: P2.6 / P2.9 / P3.9
- Cabinet Size: 500×500×85mm
- Cabinet Weight: 7.36kg
-
Key Features:
- High brightness and high refresh rate for flicker-free, stable visuals
- Front-maintenance design for easy on-site troubleshooting
- Corner protectors for enhanced durability during transport and installation
Technical Specifications
| Parameter | P2.6 | P2.9 | P3.9 |
|---|---|---|---|
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 |
| Density (dots/m²) | 147,456 | 112,896 | 65,025 |
| LED Lamp | SMD1515 | SMD1515 | SMD2020 |
| Module Pixel | 96×96 | 84×84 | 64×64 |
| Cabinet Pixel | 192×192 | 168×168 | 128×128 |
| Module Size (mm) | - | 250×250×14 | 250×250×14 |
| Cabinet Size (mm) | 500×500×85 | 500×500×85 | 500×500×85 |
| Brightness (nits) | 700-800 (32s) | 700-800 (32s) | 700-800 (28s) |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Power Consumption (W/m²) | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| Installation Method | Stack / Hanging / Mounted | Stack / Hanging / Mounted | Stack / Hanging / Mounted |
| Maintenance | Rear | Rear | Rear |
| Signal Input | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI |
2. Outdoor Front Maintenance Series
- Available Models: P2.9 / P3.9 / P4.8
- Cabinet Size: 500×500×85mm
- Cabinet Weight: 8kg
-
Key Features:
- High brightness outdoor-grade solution for clear visibility in strong sunlight
- High refresh rate optimized for large-scale outdoor live events and filming
- Corner protectors for improved durability in rental and transportation scenarios
