Description
Elevated Aluminum bleachers - Premium Seating Solutions
Elevated Bleachers are ideal for football, baseball, soccer or other events where elevated seating can greatly improve the spectators’ viewing experience. Our bleachers include guardrails, aisles with handrails, entry stairs, anodized aluminum seat planks, double (2) 2"x10” mill finish aluminum foot planks and riser planks on all rows to meet building and safety codes. ADA accessible bleacher seating and accessible ramps are also available. Our elevated bleacher seating product is the highest quality sports bleachers available, designed and engineered by true industry experts.
Why Choose Our Elevated Bleachers?
- Safety First: Designed to meet or exceed all relevant safety codes with guardrails, handrails, and slip-resistant surfaces
- Premium Materials: Constructed from high-strength aluminum alloy 6061-T6 for maximum durability and corrosion resistance
- Customizable: Available in various lengths, configurations, and with optional features like backrests and canopies
- Easy Installation: Modular design allows for quick and straightforward assembly on-site
- Low Maintenance: Anodized finish requires minimal upkeep and resists fading, scratching, and corrosion
- Versatile Applications: Perfect for schools, universities, stadiums, arenas, parks, and other public spaces
Technical Specifications
| Model | Rows | Seat Length | Capacity | Weight | Standard Features |
|---|---|---|---|---|---|
| SB-200 | 2 Rows | 2.25m / 4.5m / 5.85m | 20 / 36 / 52 persons | 91 kg / 153 kg / 210 kg | Tip & Roll, Safety Back, Optional Guardrail |
| SB-300 | 3 Rows | 2.25m / 4.5m / 5.85m | 30 / 54 / 78 persons | 135 kg / 229 kg / 315 kg | Wheels, Guardrail, Aisle Handrail |
| SB-400 | 4 Rows | 2m / 4.5m / 6m / 8m | 20 / 40 / 56 / 82 persons | 75 kg / 125 kg / 165 kg / 235 kg | Tip-N-Roll, Guardrail, Double Footboard |
| SB-600 | 6 Rows | Customizable | Up to 120 persons | Quote-based | Guardrail, Aisles, Handrails, ADA Options |
| SB-800 | 8 Rows | Customizable | Up to 160 persons | Quote-based | Guardrail, Aisles, Handrails, ADA Options |
Customization Options
Material Options
- Aircraft-grade Aluminum 6061-T6 (Standard)
- Galvanized Steel (For Extreme Environments)
- Marine-Grade Aluminum (For Coastal Areas)
Accessories
- HDPE Plastic Seats
- Backrests and Armrests
- UV-Resistant Canopies
- Enclosed Panels
- ADA-Compliant Ramps
Finishes
- Anodized Finish
- Powder Coating (Multiple Colors)
- Wood-Grained Finish
- Electrophoretic Coating
Important Compliance Note
Local building and fire codes in many jurisdictions require guardrails for rows exceeding 30" (762mm) in height. We recommend verifying municipal requirements and can provide compliant safety accessories as needed. Our engineering team can assist with code compliance documentation for your project.
Product Gallery

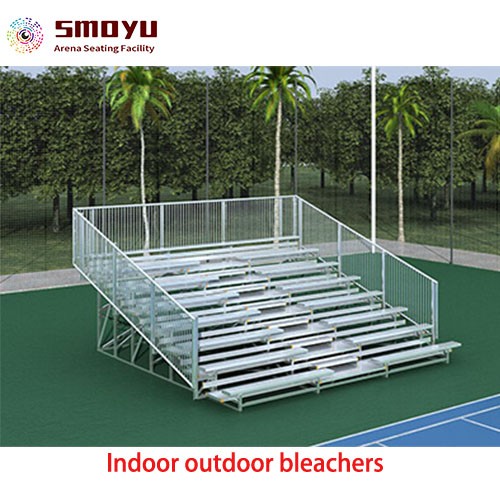

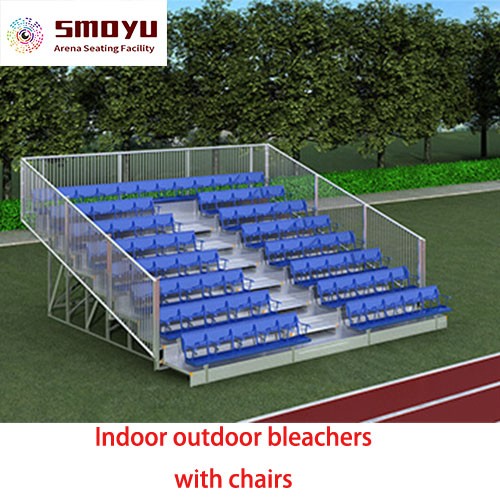

4 Row Aluminum Bleachers with Tip-N-Roll System

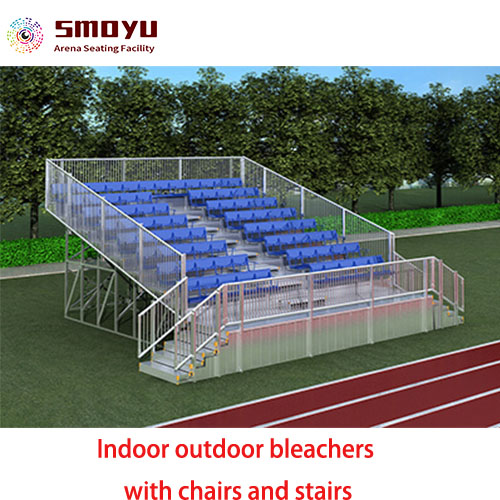

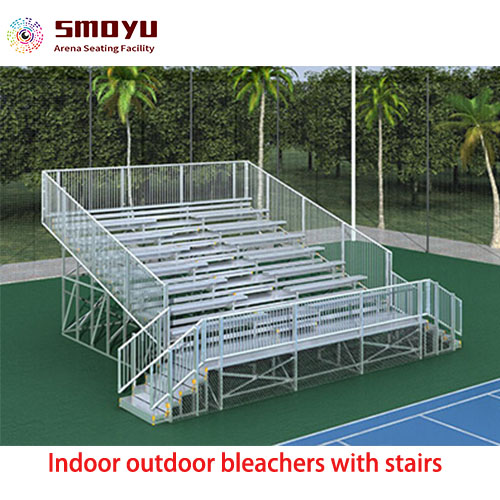

Elevated Bleachers with Guardrails and Aisles
Indoor Bleachers with HDPE seats
Popular Configurations
4 Row Aluminum with Back Support
Material:
Aluminum 6061-T6
Rows:
4
Capacity:
Up to 82 persons
Features:
Tip-N-Roll, HDPE seats, Back Support
6 Row Galvanized Steel
Material:
Galvanized Steel
Rows:
6
Capacity:
Up to 120 persons
Features:
Fixed, Guardrails, Handrails, ADA Ramp
8 Row Aluminum with Canopy
Material:
Aluminum 6061-T6
Rows:
8
Capacity:
Up to 160 persons
Features:
UV-Resistant Canopy, Enclosed Panels
Request Your Quote Today!
Explore our standard models or work with our engineering team to create fully customized bleacher systems. Contact our sales specialists for CAD drawings, bulk order pricing, and project consultation services.
Contact Us Download Spec Sheet Request Custom Quote
