1， stadium seats FB01 series
The stadium seating FB01 series is perfect for stadiums for seat design, shape and installation. It is very beautiful, safe and long life to be used in stadium, good for installation and repairing them. The seat material is made of HDPE which is High-density polyethylene. One time to be shaped and soft surfaces. HDPE is good material for seats and high resistance against high temperatures, Anti-aging, UV proof, impact resistance, high and low temperature resistance, good anti-oil resistance.
The size of the FB012 floor mounted with aluminum feet as per Height Width Depth 830x500x550mm. It Multifunction consist of Backrest and Seat board in HDPE plastic, and Die-casting aluminum frame for installation.
The Main mechanical properties of HDPE seat:
The stadium seating FB01 series is approved with standard QB/T2601-2013, Seats and backrest of the chair static load: 2000N×20times, back of the chair static load 800N×20times. Balance load of seat part: 2000N. Endurance load of seats part and back part: 960N×200 thousand times, and 350N×200 thousand times. Anti-impact Ability: Hight 360mm×20 times, back of the chair Hight 630mm×20 times. Ageing resistance performance: ≥3500. Outdoor UV proof. High temperature resistance：-60°C to ＋80°C, 72h. The seat Life span: more than 10 years.
Color of the HDPE: We have standard color for produce, also we are glad to supply chairs with required Pantone Numbers, required Color samples for confirm.
FB012 is consisted of plastic parts and metal frame chairs. The HDPE chair parts size as below:
There are 4 ways of installation.
l Floor Vertical installation (item No. FB011):
(directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).
l Side Riser mounted with Die-casting aluminum feet (item No. FB012)
l Multifunction Stand feet and wall feet Riser mount (Item number FB013):
(seats are fixed upon the iron feet, which fixed upon the riser slope of concrete steps or structure)
Foldable stadium seat without armrest (Item no. FB014).
l bleachers seats installed
A row of seats installed upon a steel or aluminum structure or concrete stairs, can also be telescope bleacher seats system.
1, All above Feet are High quality produced aluminum/steel/plastic material, Polished, sprayed surface, good quality and good appearance.
2, Pipe：High quality pipe connects 1-20 seats or more.
3, Steel parts: All are anti-oxidation or painted.
4, Fastening piece：Standard screws and Cushion for connecting hoops and seats and feet. Using expansion bolt to fix feet on the floor.
5, Aluminum sheet for seats numbers: Built in upside of the back parts, rows number is in the both side of per sets.
There are different ways of installation the arena seating, but there are 4 main methods:
First is floor mount (directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).
Second is Riser mount (seats are installed upon the aluminum feet, which fixed upon the riser slope of concrete steps or wooden steps)
Third is Bleachers seats (A row of seats installed upon a steel/aluminum/ concrete stair, can also be telescope bleacher seats system).
Forth is Metal structure fixed system (A system structure made in metal that Fixed install or Movable bleachers).
Fixed seats on the floor with M8×70 extension bolts, the distance between seats is 480mm, the seats Hight about 425mm from the floor. To make sure the straight line of seats and rows.
According to Article 5.2 of JGJ57-2000: tolerances of average distance difference between seats should be less than 10mm, tolerances of rows distance difference should be less than 40mm.

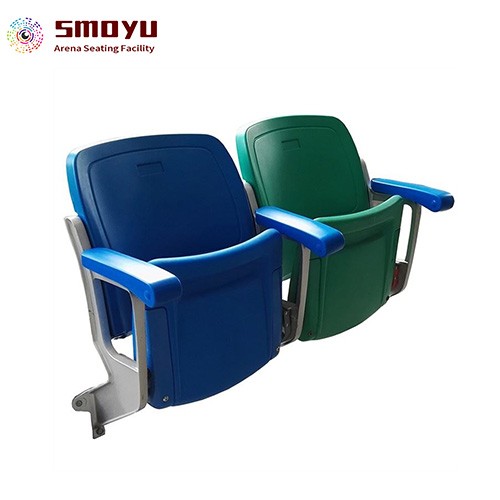

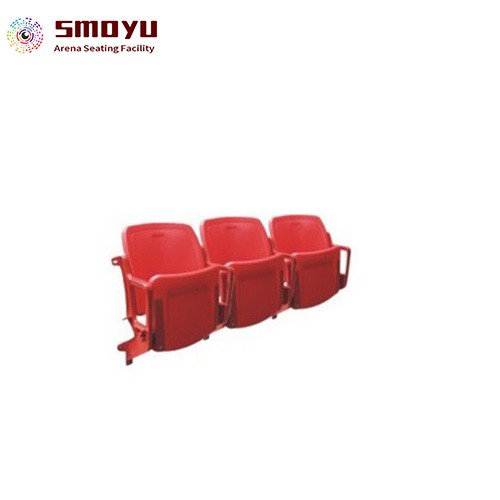

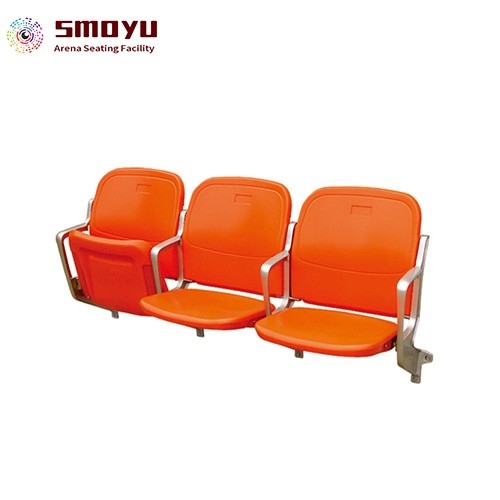

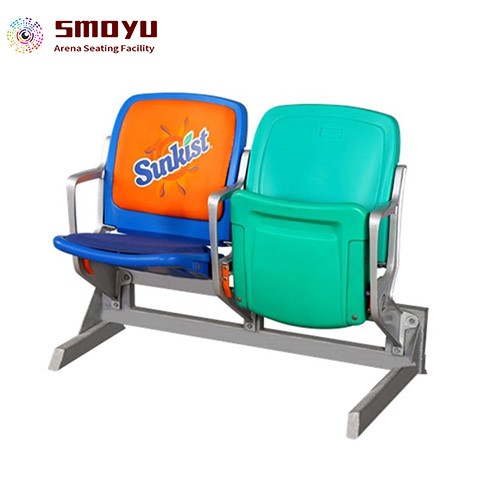

4， Picture and color of seats:
MOQ 500pcs is required for per color per type of plastic seats. Regular colors are Red, blue, green, yellow. We can make color as per pantone number as well.
