Description
Product Content:
RENTAL DISPLAY 576 MAX Series
The 576 MAX Series is a professional outdoor rental LED display solution, designed for high-performance, durable, and flexible event setups. With IP65 waterproof/dustproof protection, high brightness, and front maintenance design, it delivers reliable, stunning visuals for concerts, live events, and outdoor stage productions.
Key Features
- Cabinet Size: 576×576×70mm
- Cabinet Weight: 7.8kg
- Protection Level: IP65 (waterproof & dustproof)
- Brightness: 4500cd/㎡ (nits)
- Refresh Rate: 3840Hz
- Maintenance: Front Maintenance
- Supported Models: P3.79 / P4.8
- Installation Methods: Stack Installation, 90° Bevel Edge Splicing, Curved Configurations
Technical Specifications
| Parameter | P3.79 | P4.8 |
|---|---|---|
| Pixel Pitch (mm) | 3.79 | 4.8 |
| Density (dots/m²) | 69,169 | 43,264 |
| LED Lamp | SMD1921 | SMD1921 |
| Module Pixel | 76×76 | 60×60 |
| Cabinet Pixel | 152×152 | 120×120 |
| Module Size (mm) | 288×288×10mm | 288×288×10mm |
| Cabinet Size (mm) | 576×576×70mm | 576×576×70mm |
| Cabinet Weight (kg) | 7.8 | 7.8 |
| Brightness (nits) | 4500cd/㎡ | 4500cd/㎡ |
| Power Consumption (W/m²) | 440W/㎡ | 440W/㎡ |
| Installation Method | Stack / Splicing / Curved | Stack / Splicing / Curved |
| Maintenance | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 |
| Signal Input | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI |
Cabinet & Installation Design

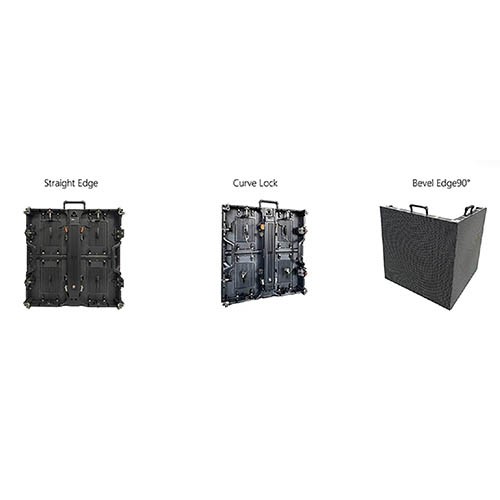

- Cabinet Construction: Straight Edge, Curve Lock, 90° Bevel Edge for flexible and seamless setups
-
Installation Methods:

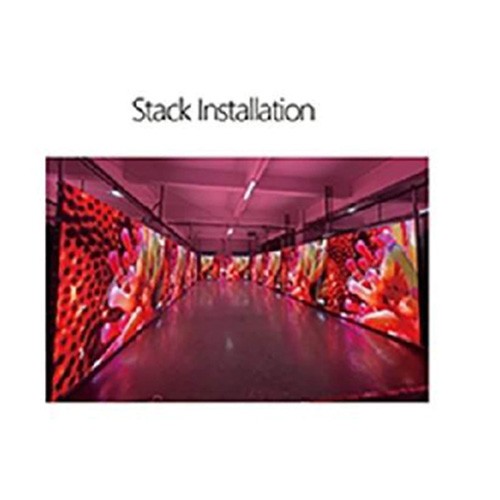

- Stack Installation for tunnel/linear displays

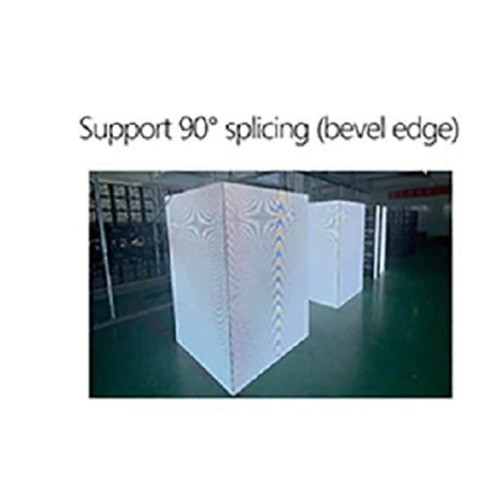

- 90° Splicing for corner setups

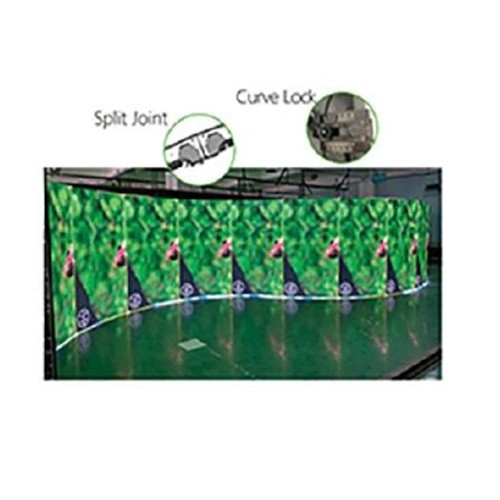

- Curved/ Split Joint configurations for creative visuals
