Product Content:
RENTAL DISPLAY Effiel Series
The Effiel Series is a professional-grade rental LED display system, engineered for high flexibility, durability, and quick setup for concerts, events, and live performances. It supports both indoor and outdoor use, with modular cabinets that enable creative curved, S-shaped, and flat configurations.
Indoor Front Maintenance Series
- Available Models: P1.9 / P2.6 / P2.97 / P3.9
- Cabinet Size: 500×500×90mm
- Cabinet Weight: 8kg / 8.5kg
-
Key Features:

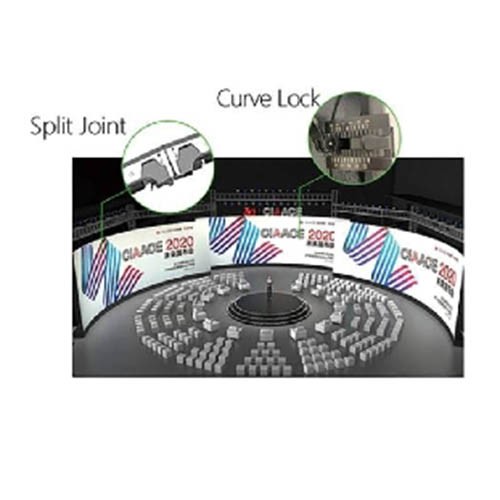

- ±15° angle adjustment for seamless curved installations
- Corner protectors and curve locks for enhanced durability
- High brightness and 3840Hz refresh rate for flicker-free visuals

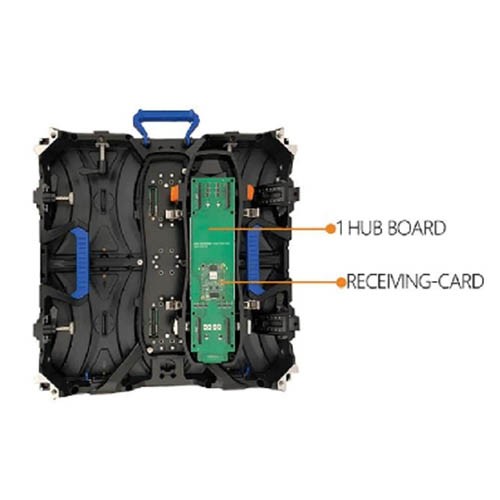

- Front/rear maintenance options for flexible on-site service
Indoor Technical Specifications
| Parameter | P1.9 | P2.6 | P2.97 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 | 2.604 | 2.976 | 3.91 |
| Density (dots/m²) | 65,536 | 36,864 | 28,224 | 16,384 |
| LED Lamp | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Module Pixel | 128×128 | 96×96 | 84×84 | 64×64 |
| Cabinet Pixel | 256×256 | 192×192 | 168×168 | 128×128 |
| Module Size (mm) | - | 230×230×17 | 168×168 | 250×250×15 |
| Cabinet Size (mm) | 500×500×90 | 500×500×90 | 500×500×90 | 500×500×90 |
| Brightness (nits) | 700-800(40s) | 700-800(32s) | 700-800(32s) | 700-800(28s) |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Power Consumption (W/m²) | 160W/㎡ | 160W/㎡ | 160W/㎡ | 160W/㎡ |

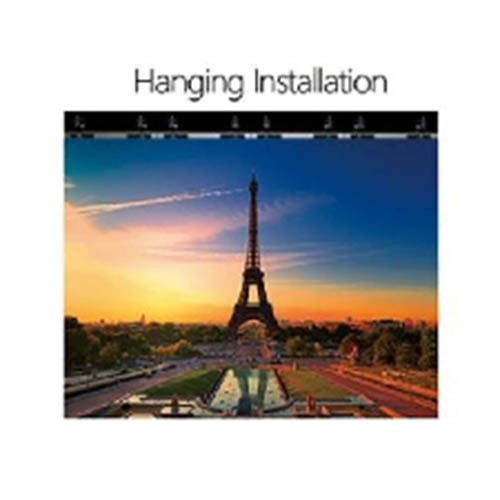

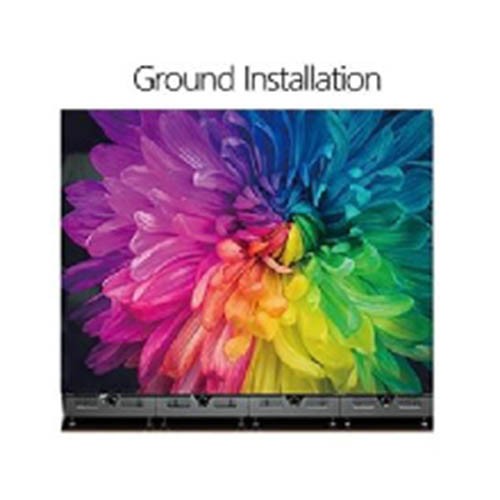

| Installation Method | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground | Stack / Hanging / Mounted / Ground |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Signal Input | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI | S-video / VGA / DVI / HDMI / SDI |
Outdoor Front Maintenance Series
-
