Rental display S series

Product Item：SMOYU-S-RD-2026

Indoor & Outdoor Available

Pixel Pitch: P1.9-P4.8

Lightweight 6.5kg/7kg/9kg/13kg Cabinet

Front/Rear Maintenance & Curve Lock

Description

Product Content:

RENTAL DISPLAY S SERIES

The S Series is a professional-grade rental LED display solution, built for both indoor and outdoor stage events, concerts, and live productions. With ultra-slim 75mm cabinets, lightweight design, and flexible configurations, it delivers high-performance visuals for every rental scenario.

1. Indoor Front Maintenance Series

Available Models: P1.5 / P1.9 / P2.6 / P2.9 / P3.9
Cabinet Sizes: 500×500×75mm / 500×1000×75mm
Cabinet Weight: 6.5kg / 9kg
Key Features:
- High brightness (700-800 nits) and 3840Hz refresh rate for flicker-free visuals

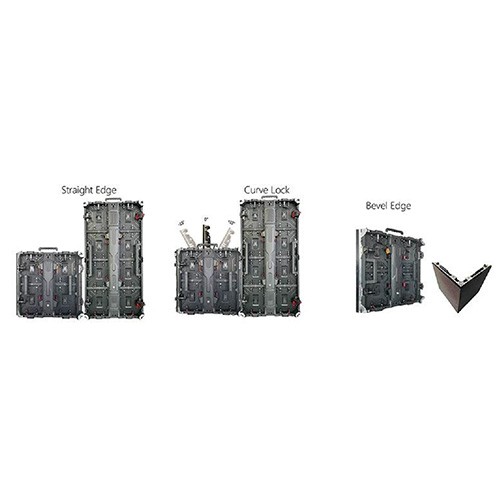

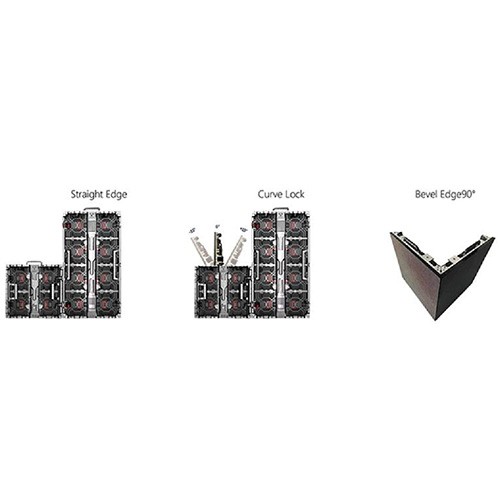

- Corner protectors and curve locks for durable, seamless setups
- Front/Rear maintenance options for flexible on-site service

Indoor Technical Specifications

Parameter	P1.9	P2.6	P2.9	P3.9
Pixel Pitch (mm)	1.95	2.604	2.976	3.91
Density (dots/m²)	252,144	147,456	112,896	65,536
LED Lamp	SMD1515	SMD1515/2121	SMD1515/2121	SMD2121
Module Pixel	128×128	96×96	84×84	64×64
Cabinet Pixel	256×256	192×192	168×168	128×128
Module Size (mm)	-	250×250×15	-	-
Cabinet Size (mm)	500×500×75 / 500×1000×75	500×500×75 / 500×1000×75	500×500×75 / 500×1000×75	500×500×75 / 500×1000×75
Cabinet Weight (kg)	6.5 / 9	6.5 / 9	6.5 / 9	6.5 / 9
Brightness (nits)	700-800(40s)	700-800(32s)	700-800(32s)	700-800(28s)
Refresh Rate (Hz)	3840	3840	3840	3840
Power Consumption (W/m²)	160W/㎡	160W/㎡	160W/㎡	160W/㎡
Installation Method	Stack / Hanging / Mounted / Ground	Stack / Hanging / Mounted / Ground	Stack / Hanging / Mounted / Ground	Stack / Hanging / Mounted / Ground
Maintenance	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Signal Input	S-video / VGA / DVI / HDMI / SDI	S-video / VGA / DVI / HDMI / SDI	S-video / VGA / DVI / HDMI / SDI	S-video / VGA / DVI / HDMI / SDI
